Supports 2 x 4th Gen Intel® Xeon® Scalable Processors adopts a new Microarchitecture core, supports up to 350W models, and has strong computing performance;Supports 10 450W dual width, full height, an
Supports 2 x 4th Gen Intel® Xeon® Scalable Processors adopts a new Microarchitecture core, supports up to 350W models, and has strong computing performance;
Supports 10 450W dual width, full height, and full length GPUs, significantly improving heterogeneous computing power;
Supports GPU to CPU x32 transmission bandwidth, doubling the industry's x16, meeting the requirements of high communication bandwidth scenarios between CPU and GPU;
It supports 32 DDR5 memories with a maximum frequency of 4800 MHz, and the Memory bandwidth is 50% higher than that of the previous generation.
Supports two solutions: 8-card direct connection and 10-card switch, supports multiple GPU topology configurations, and flexibly meets the needs of different application scenarios;
Ultra high scalability, supports up to 15 standard PCIe slots, and can be configured with 8 dual width GPUs+7 PCIe standard cards+1 OCP 3.0 network card;
The storage configuration can be flexibly changed according to requirements, meeting the local storage needs of high capacity and performance, and supporting a maximum of 24 U.2 NVMe.
| characteristic | D6412-8TR Technical Specifications |
| Option | 4U8 Card - Direct Through |
| Processor | Supports 2 Intel ® Xeon ® Sapphire Rapids (compatible with Emerald Rapids), supporting up to 350W UP to 4 Links |
| Memory | Supports 32 DDR5 memory slots, a total of 16 channels, up to 4800MHz Support for RDIMM/3DS RDIMM |
| Storage controller | Integrated 6Gb/s SATA controller; Optional support for 12Gb/s SAS HBA and 12Gb/s SAS RAID controller Supports VMD and VROC 8.0 |

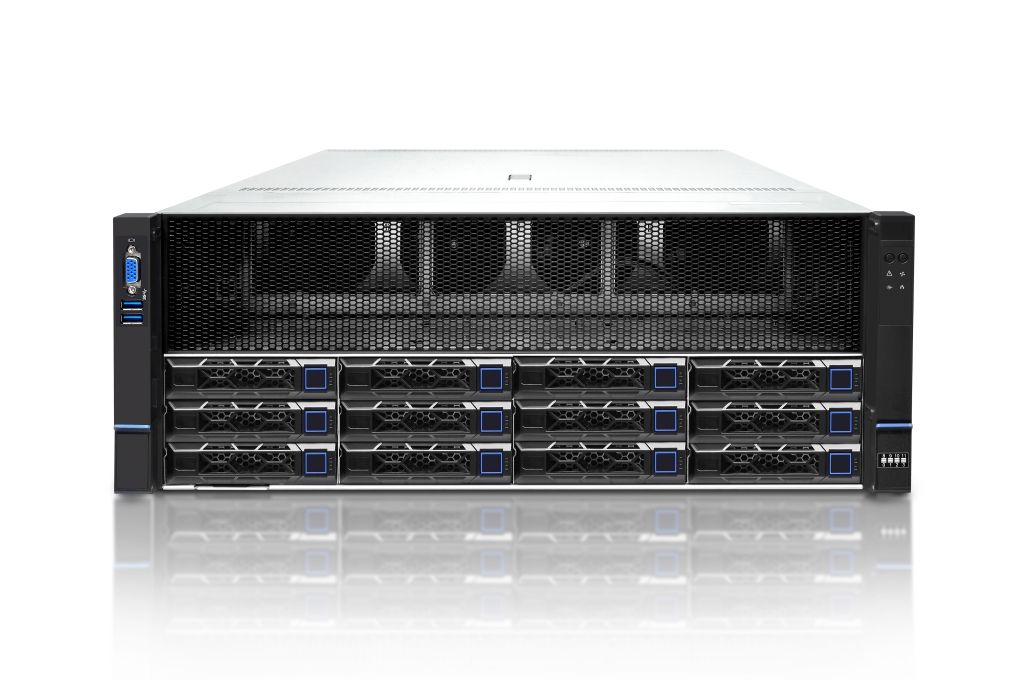

| Local storage | Supports 12 3.5-inch hard drives Supports 8 3.5-inch hard drives Supports 24 2.5-inch hard drives Supports up to 4 U2 NVMe SSDs Two M.2 SSDs 2280&22110, compatible with PCIe and SATA |
| PCIe extension | Supports up to 8 full height, full length, and dual width GPU cards Supports up to 11 standard PCIe slots Supports 1 PCIe 5.0 x16+2 PCIe 5.0 x8 in addition to 8GPU |
| Network | 1 1Gb RJ45 dedicated management network port Supports 1 OCP3.0 network card, default PCIe 5.0x8, optional x16 signal Optional 4 × 1GbE/2 × 10Gb SFP+/4 × 10Gb SFP+/2 × 25Gb SFP28 Support NCSI |

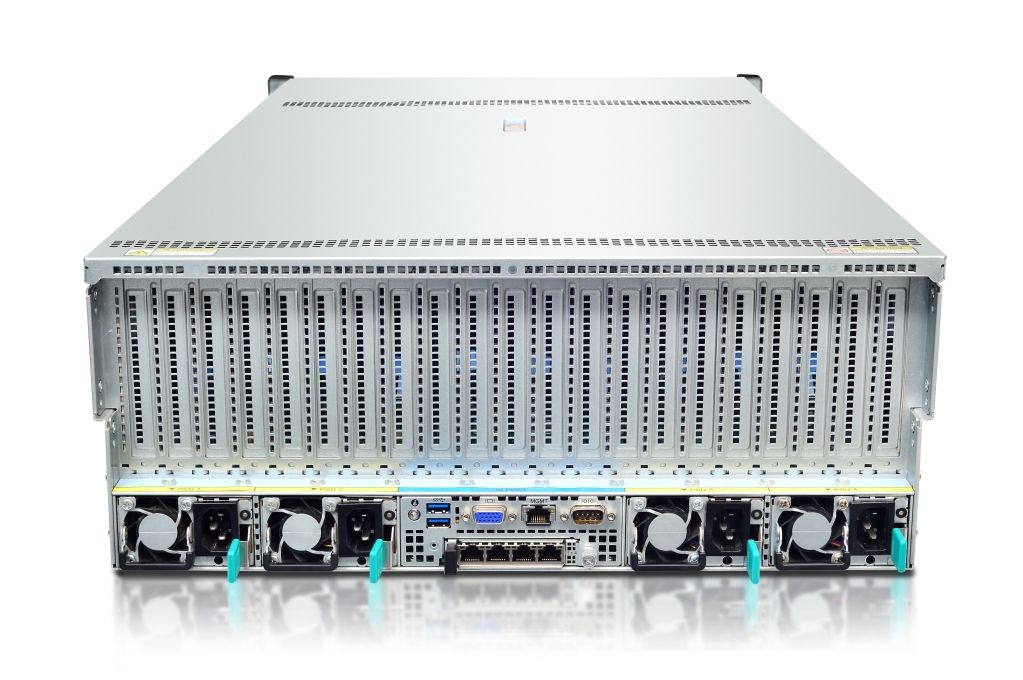

| Port | Front end: 2 USB 3.0, 1 VGA interface Rear: 1 serial port, 2 USB 3.0 interfaces, 1 VGA interface, and 1 RJ45 management port |
| Management function | Integrated BMC management chip AST2600, supporting functions such as IPMI2.0, Redfish, SOL, KVM, virtual media, etc |
| Security | Optional TPM/TCM security module, intrusion detection when opening the chassis cover, and locking the upper cover of the chassis (tool free) Supports BIOS/BMC dual flash redundancy design |
| power | Can be configured with 4 CRPS power modules, supports hot swapping, and supports 2+2/3/1/1+1 redundancy mode (different redundancy modes do not require brushing the model) Optional 1600W 2000W 2400W 2700W Optional platinum or titanium grade power module |
Fan | N+1 redundancy, hot swappable Support for rear fan module selection |

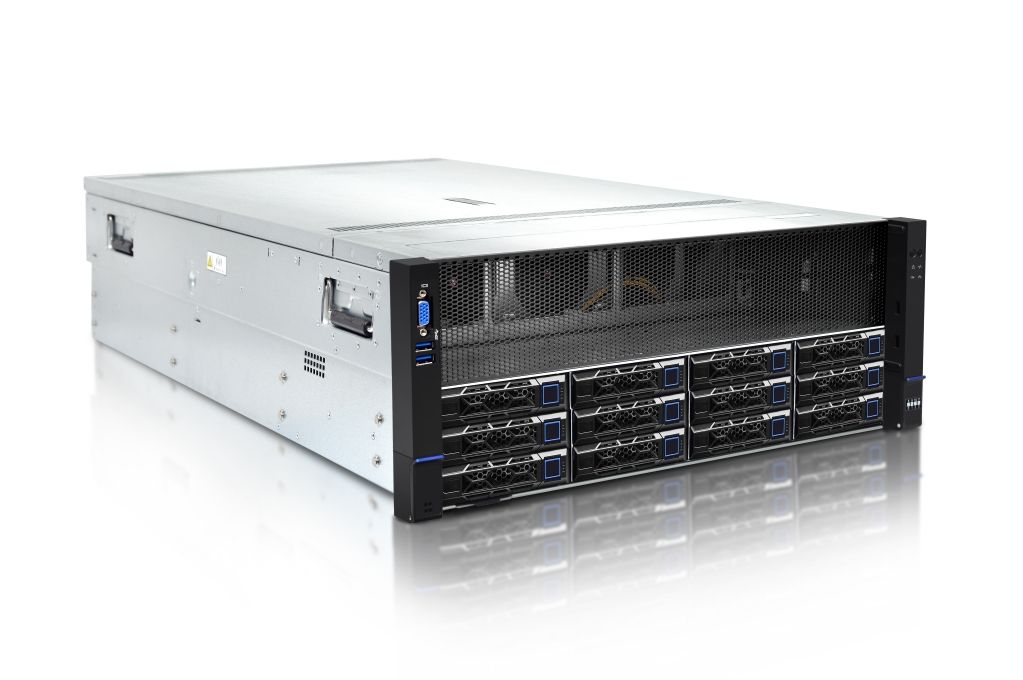

| Chassis size | 2.5 "hard drive chassis size, width 448x height 175x depth 772mm (including ear hook 792mm) 3.5 "hard drive chasis size, width 448x height 175x depth 822mm (including hanging ears 842mm) |
| Working temperature | 5 º C -35 º C |
| Working relative humidity | 8% -90% |
| Support operating system | Microsoft Windows Server, Microsoft Hyper-V Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Ubuntu, Oracle Linux, VMware ESXi, Citrix XenServer, etc |
