Enterprise database, database processing and storage, NAS SAN, high-performance computing, data center
Ultimate performance meets critical application requirements | Supports Intel's third-generation Xeon scalable processor, utilizing 10nm technology and Sunny Cove's new microarchitecture for powerful performance Supports 32 DDR4 memory, with a maximum memory frequency of 3200MHz and significantly increased memory bandwidth |
Ultra high density massive storage | Supports up to 44 3.5-inch hard drives, providing ample storage space to easily meet the demands of massive storage applications Supports 4 PCIe 4.0 U.2 NVMe SSDs, providing ultra-high storage I/O performance to meet tiered storage requirements |
High scalability and flexible configuration | Hardware module decoupling design, multiple storage configurations, I/O expansion modules, flexible configuration according to business needs Supports up to 10 PCIe 4.0 standard slots and can expand up to 6 full height, full length, and single width PCIe devices, providing highly available I/O expansion space Supports OCP NIC 3.0 network expansion, optional expansion of 4x1GbE/2x10Gb SFP+/4x10Gb SFP+/2x25Gb SFP28 network configuration |
Stable, reliable, and intelligent management | The key components of the system are designed to be redundant and hot swappable, while supporting tool free disassembly and assembly to improve maintenance efficiency and enhance system availability Integrated intelligent management chip, providing an open management platform, supporting multiple management protocols such as IPMI2.0, Redfish, SNMP, etc Supporting various management functions such as remote KVM, virtual media, critical component status monitoring, and abnormal alarms, achieving comprehensive remote system level intelligent management |
| Function | 4023G-CNR3 Technical Specifications |
| Form | 4U rack server |
| Processor | 1/2 third-generation Intel ® xeon ® Scalable processor (Ice Lake) (8300/6300/5300/4300 series), up to 270W |
| Chipset | Intel ® C621A |
| Memory | 32 DDR4 memory slots with a total of 16 channels, up to 3200MHz |
| Storage controller | Integrated 6Gb/s SATA controller; Optional support for 12Gb/s SAS HBA and 12Gb/s SAS RAID controller |

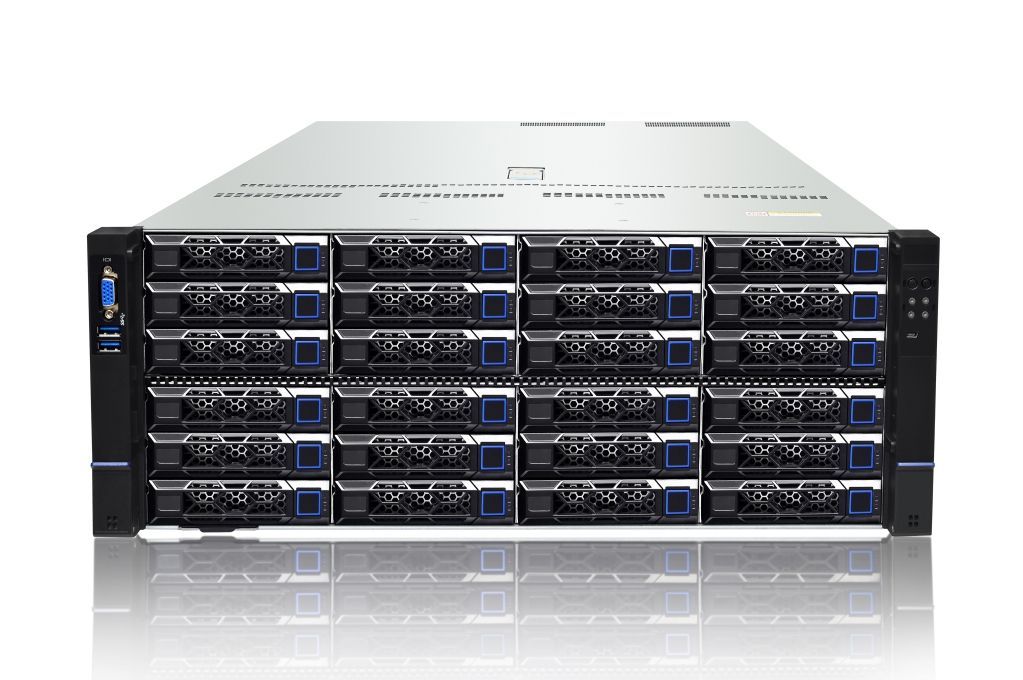

| Storage | Front end: Supports up to 24 3.5-inch hard drives |
| PCIe extension | Supports up to 10 PCIe 4.0 expansion slots Up to 2 full height, full length, double width GPUs or 8 half height, half length, single width GPUs can be supported |
| Network | 1 1Gb RJ45 dedicated management network port, optional 4x1GbE,2x10Gb SFP+,4x10Gb SFP+,2x25Gb SFP28 OCP network card |

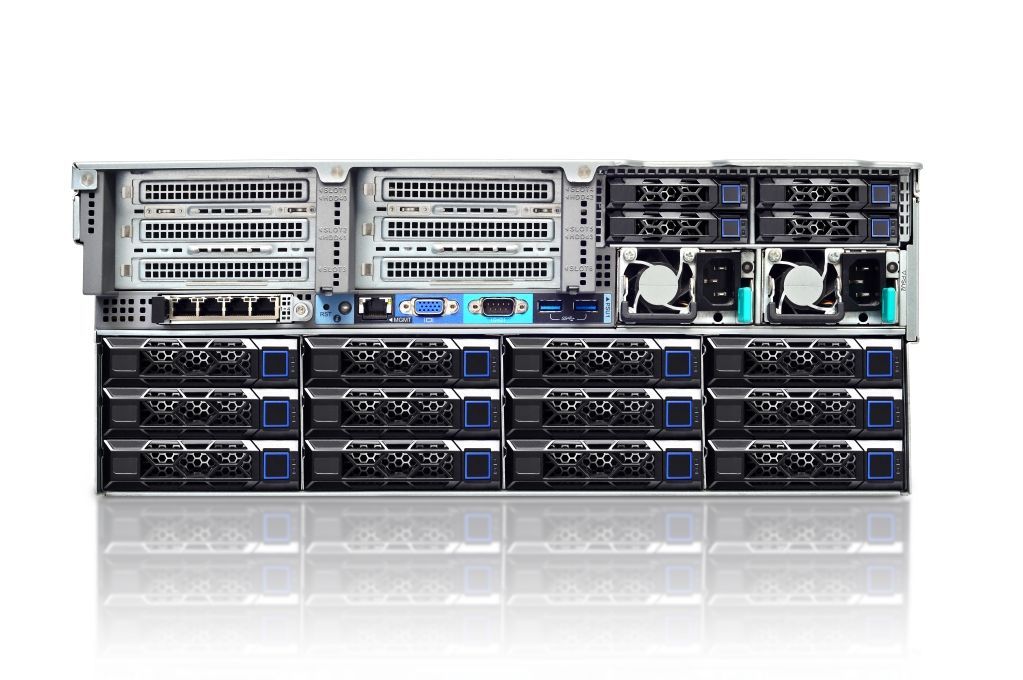

| Port | Front: 1 VGA, 2 USB 3.0, 1 LCD Mini USB |
| Management function | Integrated BMC management chip, supporting IPMI2.0 Redfish、SOL、KVM、 Virtual media and other functions Provide 1 1Gbps RJ45 dedicated management port with optional LCD management module |
| Security | Optional TPM/TCM security module, intrusion detection when opening the chassis cover, and locking the upper cover of the chassis |
| Power | Can configure 2 power modules, support 1+1 redundancy, and support hot swapping |
| Fan | 6 hot swappable fan modules, supporting N+1 redundancy, intelligent speed regulation, and abnormal alarms |
| Size | Rack mounted 4U, width 448mm x height 175mm x depth 778mm (excluding hanging ears 758mm) |
| Working temperature | 5 º C -35 º C |
| Supported operating systems | Microsoft Windows Server、Microsoft Hyper-V Server、Red Hat Enterprise Linux、SUSE Linux Enterprise Server、CentOS、Ubuntu、Fedora、Solaris、Oracle Linux、FreeBSD、VMware ESXi、Citrix XenServer |
