Virtualization, cloud computing, high-end enterprise servers, hyper converged storage, flexible network options
| Ultimate performance meets critical application requirements | Supports 2 AMD EPYCs ™ The 7002/7003 series processors have a maximum of 64 cores and 128 threads per CPU, and support a maximum of 280W TDP CPUs; |
| Flexible configuration and on-demand selection | Hardware module decoupling design enables flexible configuration of computing, storage, and network to meet different business needs; Supports up to 6 U2 NVMe, meeting high-speed requirements; Supports up to 10 standard PCIe expansion slots, supports training and inference GPUs; Supports 1 OCP NIC 3.0 network expansion, with optional expansion options for 4x1GbE/2x10Gb SFP+/4x10Gb SFP+/2x25Gb SFP28 network configurations. |
| Stable, reliable, and intelligent management | The key components of the system are designed with redundancy and hot swapping, and support tool free disassembly and assembly to improve maintenance efficiency and system availability; Integrate intelligent management chips, provide an open management platform, support multiple management protocols such as IPMI2.0, Redfish, SNMP, etc; Supporting various management functions such as remote KVM, virtual media, critical component status monitoring, and abnormal alarms, achieving comprehensive remote system level intelligent management. |
| Characteristic | 2123G-NR3 Technical specifications |
| Form | 2U rack server |
| Processor | Supports 2 AMD EPYC Rome/Milan/Milan X processors, with up to 64 cores per processor and a maximum power of 280W 4 xGMI links interconnection |
| Memory | 32 DDR4 memory slots, a total of 16 channels, supporting up to 3200MHz |
| Storage controller | Integrated 6Gb/s SATA controller; Optional support for 12Gb/s SAS HBA and 12Gb/s SAS RAID card |
| Storage | Supports up to 12 3.5 "+6 2.5" hard drives |
| PCI-E extension | Supports up to 10 PCIe expansion slots |
| GPU support | Supports up to 3 dual width GPUs or 8 single width GPUs |
| Network | 1 1Gb RJ45 dedicated management network port |

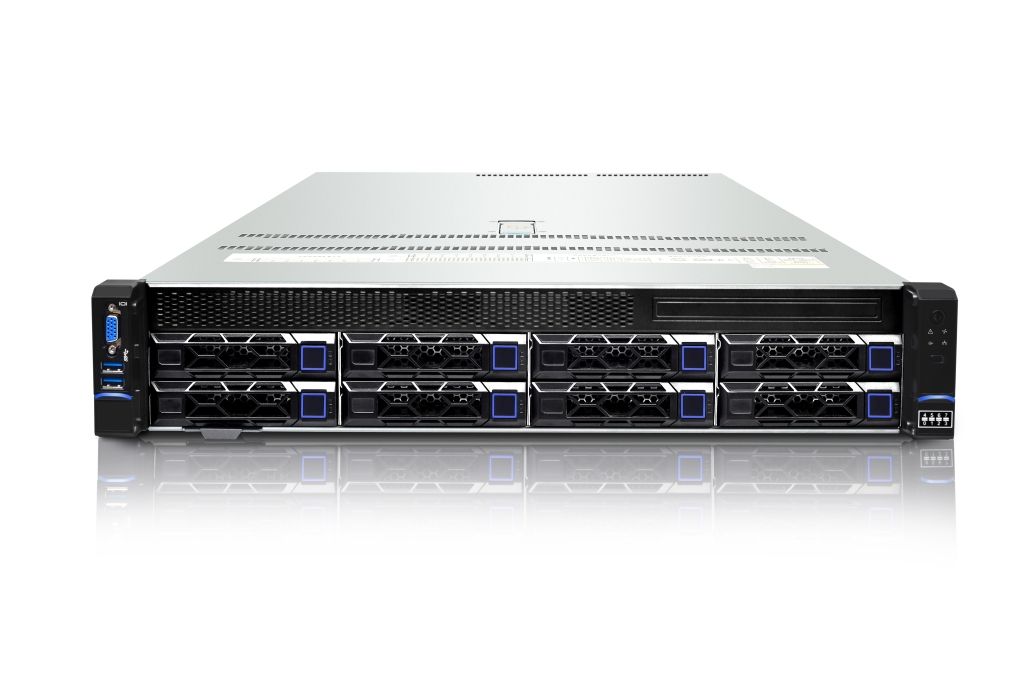

| I/O | Front end: 1 VGA, 2 USB 3.0 |
| Management function | Integrated BMC management chip AST2500, supporting IPMI2.0 Redfish、SOL、KVM、 Virtual media and other functions |
| Security features | Optional TPM/TCM security module, intrusion detection when opening the chassis cover, locking the upper cover of the chassis (tool free) |
| Power | Can configure 2 power modules, support 1+1 redundancy, and support hot swapping |
| Fan | 4 hot swappable fan modules, supporting N+1 redundancy, intelligent speed regulation, and abnormal alarm |
| Size | Rack mounted 2U, width 448x height 87x depth 763mm (including hanging ears 783mm) |
| Temperature | Working temperature: 5 º C -35 º C (without direct sunlight) |
| Operating system | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, UBuntu, Oracle Linux, VMware ESXi, Citrix XenServer, etc |
